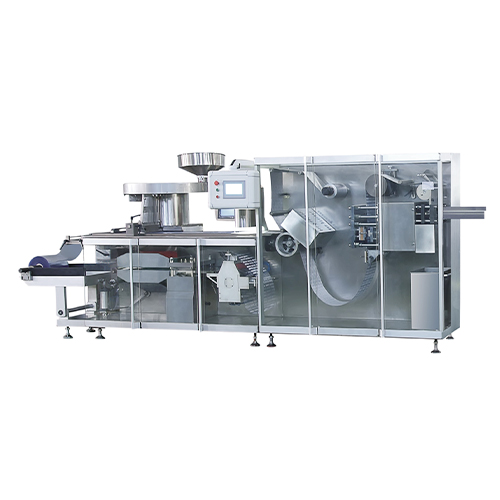

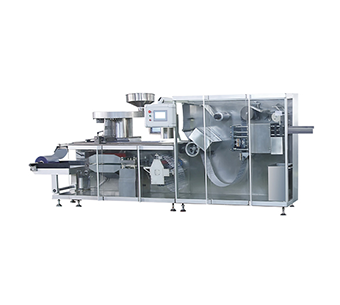

DPH-Series High Speed Blister Packing Machine
Inquire
-

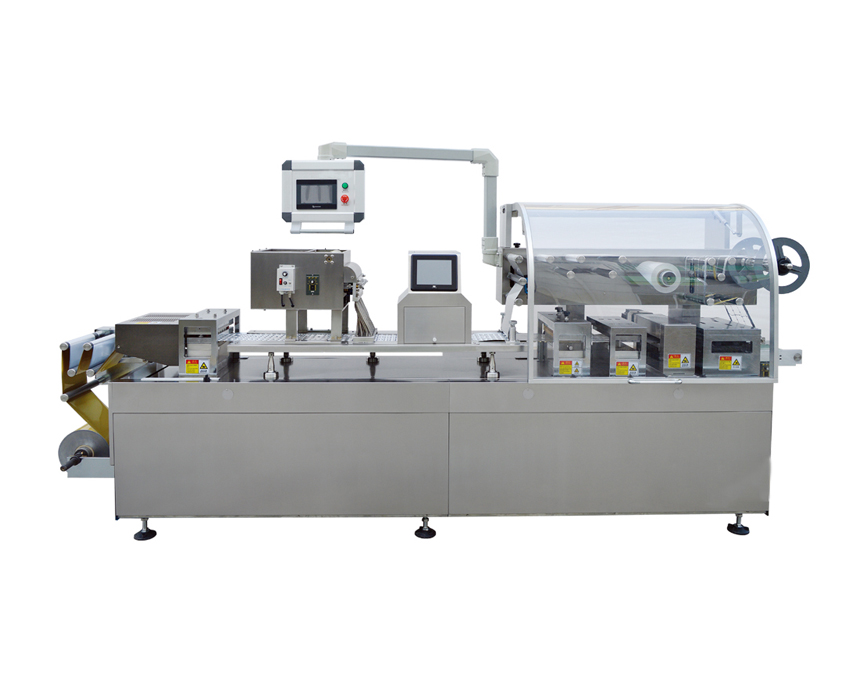

DPP-260Pro Blister Packing Machine
Inquire
-

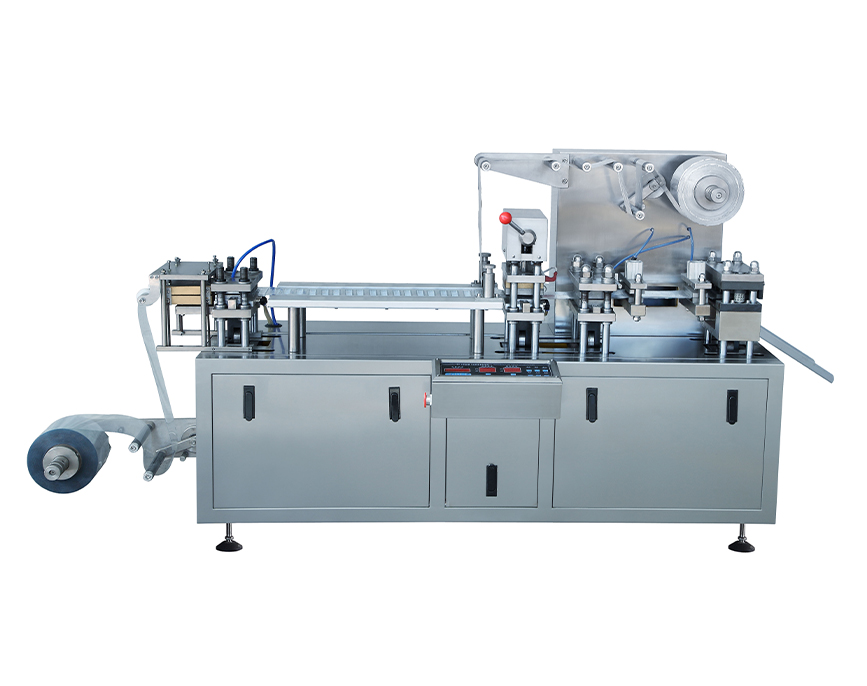

DPP-Series Flat Blister Packing Machine
Inquire
-

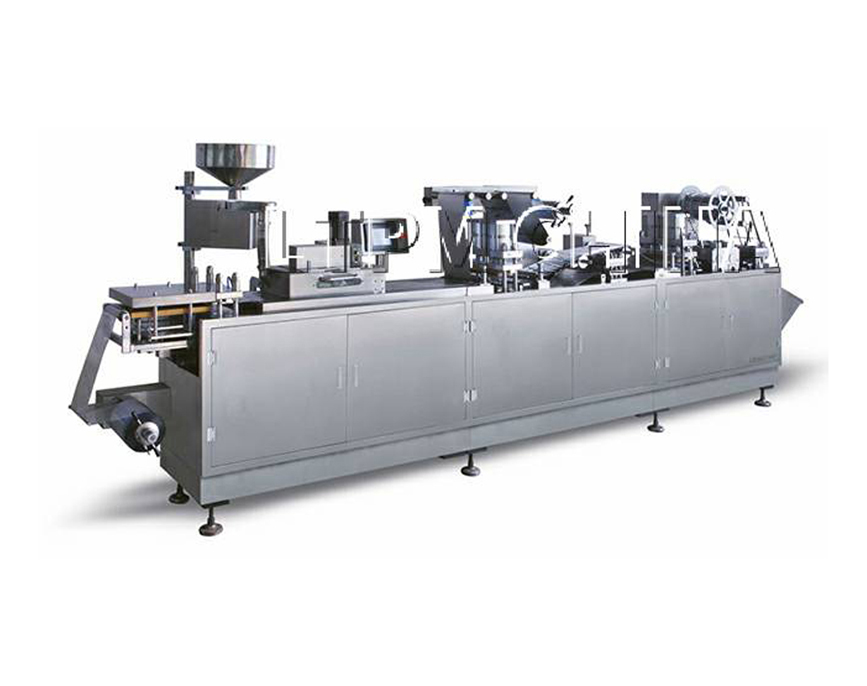

DPP-F Series Blister Packing Machine
Inquire
| Parameter | DPP Series | DPP-F Series | DPP-260Pro | DPH Series |
|---|---|---|---|---|
| Designed For | Standard production | Large-format packaging | Multi-material packaging | High-speed production |
| Punching Frequency | 15–50 punches/min | 10–35 punches/min | 20–50 punches/min (Alu-PVC)15–25 punches/min (Alu-Alu) | 60–200 punches/min |
| Max. Material Width | Up to 255 mm | Up to 320 mm | 270 mm | Up to 320 mm |
| Packaging Materials | PVC, PTP, selected Alu-Alu | PVC, Aluminum Foil, Tropical Aluminum | PVC, PTP, Alu-Alu, Paper | PVC, Aluminum Foil |
| Max. Forming Area | Up to 255 × 175 mm | Up to 320 × 170 mm | Up to 250 × 110 mm | Up to 320 × 280 mm |
| Production Capacity | Up to 6,000 sheets/h | — | — | Up to 36,000 sheets/h |
| Feeding Options | Configurable | Configurable | Multiple product-specific options | Universal / special feeding |
Multiple blister sheets can be produced per punch, allowing production capacity to be customized to your blister format and output requirements.
Choose the Right Blister Packaging Machine
Choose your machine based on your product, blister format, packaging material, and required output.
DPP Series: For standard Alu-PVC blister packaging and flexible small-to-medium production.
DPP-260Pro: For Alu-PVC, Alu-Alu, and production requiring more packaging material flexibility.
DPH Series: For high-volume pharmaceutical production and automated packaging lines.
Not sure which model you need?
Send us your product, blister sample, packaging material, and required capacity. Our engineers will recommend a suitable machine and tooling solution.

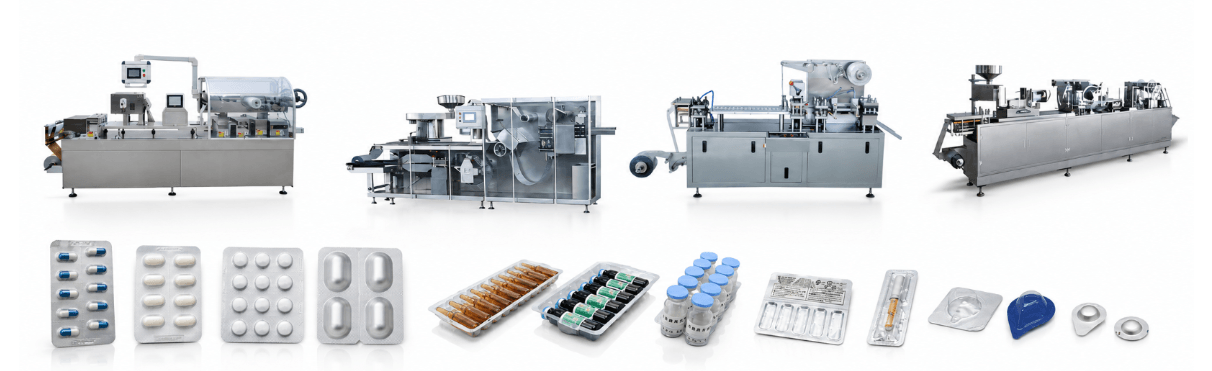

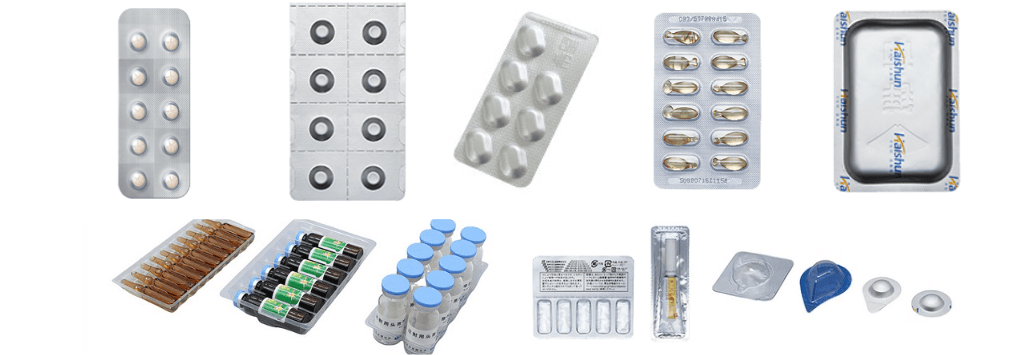

Blister Packaging Applications
One Blister Machine Range for Different Products
Different products require different feeding and packaging solutions. Our blister machines can be configured for a wide range of pharmaceutical, medical and selected industrial products.
Why Choose LTPM CHINA?
From solution design to long-term operation, our engineers support you throughout the project. We provide customized planning and drawings, manufacturing updates, installation, commissioning, and after-sales support, backed by a 5-year warranty.
Alu-Alu & Alu-PVC in One Machine
Borderless cutting helps reduce unnecessary packaging material waste.
Faster Mold Changeover
Up to 99%+ Filling Rate
Automatic sealing plate lifting helps prevent blister deformation during machine stops.
Product-Matched Feeding Systems
Secondary Packaging Solutions
LTPM provides packaging solutions includes blister packaging, bottle filling and sealing, bagging, cartoning, labeling, as well as highly customized service.
Learn More
Solid Dosage Solutions
LTPM portfolio includes powder handling, granulating, drying, capsule filling, tablet compression, and coating equipment for both batch and continuous manufacturing applications, as well as a variety of solutions for contained processing for oral solid dosage (OSD) form.
Learn More
-
If a customer starts with aluminum-plastic blister packaging and later wants to switch to aluminum-aluminum packaging, can this be achieved by just adding a device?
Yes, it can be achieved by adding an alu-alu feeder.
-
What is the film pulling size for the flat-bed blister machine, and how is it calculated?
For the DPP-88, the maximum film pulling size is 98mm.
For the DPP-140, the maximum film pulling size is 150mm.
For the DPP-250, the maximum film pulling size is 180mm.
These sizes are based on the machine specifications and are determined by the design of the film pulling mechanism. -
What is the vision inspection range for blister packaging machines?
For domestic machines, the vision inspection range is 1/8, while for higher-quality machines, it can be 1/10.
-
How is the filling material added into the blister pockets in a blister packaging machine?
For aluminum-plastic blister packaging, a disc brush feeder is used, while for aluminum-aluminum blister packaging, a specialized feeder is used.
