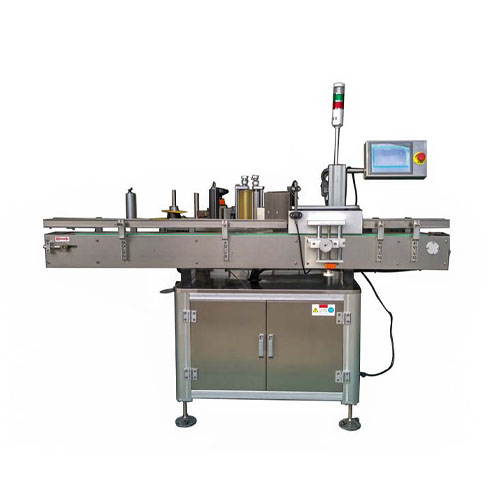

Automatic Round Bottle Labeling Machine

The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling.

Product Description
Specification Parameter
Product Application
Product Feature

Product Description

MT-200 model vertical type round bottle Round Bottle Labeling machine, in order to achieve rationalization of production target and design. The machine comes with automatic labeling process, simple operation, high speed running, accurate labeling position, beautiful labeling. The machine can be used for pharmaceutical, chemical and foodstuff Industry labeling.

Specification Parameter

Model Name	MT-200
Running speed	10-200 bottles/min
Packaging Range	Ф 15 - Ф diameter 100mm Height 25-350mm
Label size	width 10-150m mlength 15-200mm
Maximum diameter of label	Ф 300mm
Coil diameter	Ф 75mm label
Weight	200kg
Power supply	AC220V 0.5Kw 60HZ
Overall Size	2000X1300X1500

Product Application

Round Bottle

Product Feature

1

The machine adopts step motor for driving, high accuracy working. (Servo Motor is also an optional)
2

PLC control with Touch screen for operation. This controlling system are Taiwan Delta Brand.
3

The sensors of the machine are Japan imported brand, Keyence, High speed and accurate working.
4

The machine comes with automatic alarming system when lack of label, breaking label, lack of ribbon.
5

Whole body stainless steel 304 with T6 Aluminum Alloy meets GMP Standard.
6

The position of height and backwards or forwards are adjustable.
