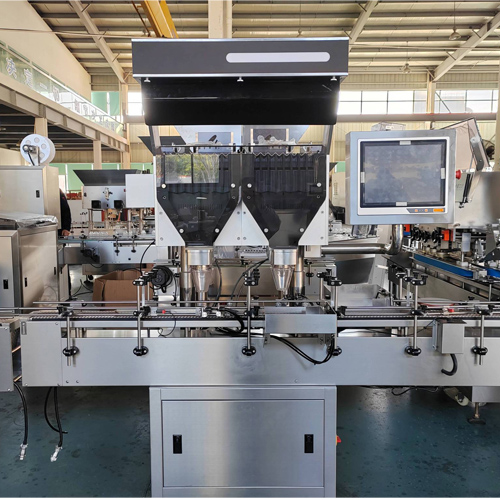

CamPro-Series Visual Counting Machine

The machine features a new design with a compact structure and aesthetically pleasing appearance. Most components are made of aluminum alloy, and the casing uses high-quality 304 stainless steel plates, meeting GMP requirements. This results in a lightweight machine that is easy to relocate.

Utilizes channel vibration for uniform feeding, ensuring reliable, stable operation with low noise.

Employs visual detection and counting for automatic counting, ensuring high accuracy with bottling errors below national standards.

Simple operation; easy to disassemble, clean, and replace parts.

The main drive section is enclosed within a housing, preventing material contamination from drive mechanism wear. All material-contact surfaces are precision-polished. Equipped with a dust collection box to reduce dust pollution.

All system control components have international standardization certifications and undergo strict incoming inspection tests to ensure functional reliability.

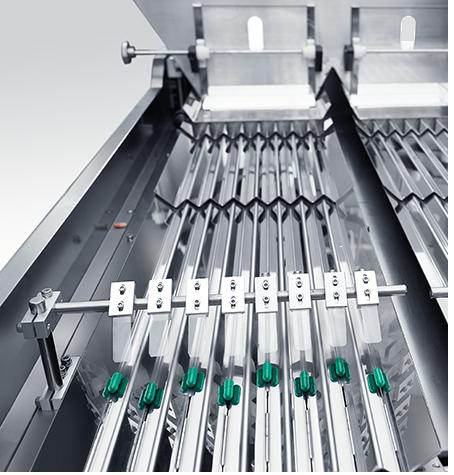

All 8 channels feature three-stage vibratory feeding, incorporating advanced foreign technology and spring-integrated vibration modules for smoother, more uniform feeding posture.

Material recognition uses a combination of a linear CCD camera and a high-speed ARM processor, offering high resolution and precise identification. Dust-proof; equipped with a self-diagnostic system that detects and rejects fragments, further ensuring counting accuracy.

The feeding nozzle securely fits bottle mouths, preventing jamming of large pellets and spillage of small pellets. A nozzle vibration device ensures smooth discharge, eliminates blockage at bottle mouths, and further guarantees counting accuracy. Equipped with multiple safety features, including automatic shutdown for missing/blocked bottles and automatic restart when cleared, plus a rejection device.

The CCD counting system features automatic light compensation adjustment and strong dust resistance. Ensures pellet counting accuracy even for dusty plain tablets and enables long-term normal operation. The machine operates reliably. Changing product specifications is simple and convenient. The control system can store working parameters for various drugs. The human-machine interface (HMI) is user-friendly and intuitive, easily mastered by operators.
