Capsule Polishing and Sorting Machine

JFP-2 Hard Capsule Sorting and Polishing Machine is a pharmaceutical special equipment for capsule polishing with sorting function.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

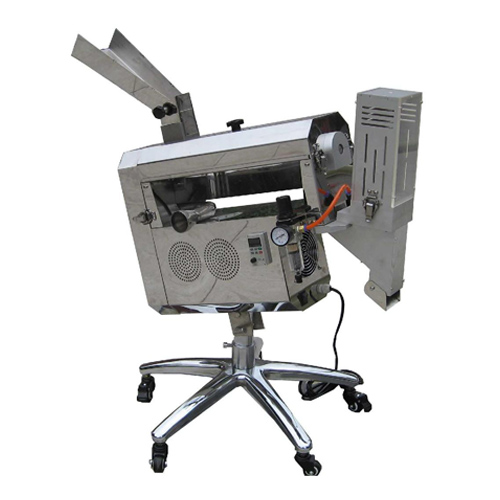

JFP Series Capsule Polisher is an advanced capsule polishing machine with filtrating function. The Whole machine is made from stainless steel; fast connection of roller bruch leads to disassemble easily and clean thoroughly; frequency inverter controls the speed of the motor, so it can bear big start up force and run very stable and reliable. It is not only applied to polishing capsule, tablet and eliminating the static electricity, but also applied to rejecting empty capsule, little dosage capsule, separated capsules and fragment. This machine is suitable for all sizes of capsules.

Specification Parameter

Model number	JFP-2
Maximum capacity	7000Granules/minute
power supply	110V/60Hz
power	180W
Compressed air pressure	＜0.4mPa
Compressed air flow	＞270L/min
Vacuum flow	＞1000L/min
Vacuum suction	＞0.13mbr
Device weight	43Kg
Noise	＜75 DB（A）
Form factor	1000X600X960mm
Working environment	About 20°C Humidity 40%-55%

Product Application

Capsule Size 00 to 5#

Product Feature

1

Under the drive of continuously variable motor, it can polish and clean the dust attached to the capsule and tablet to improve the surface of medicine polishing.
2

The equipment is small in size, beautiful, adjustable height and angle, and can be used online with various models of capsule filling machines (can also be used alone)
3

It can automatically sort empty capsules, capsules separated by body caps and capsule fragments generated by the capsule filling machine.
4

Polished part, with quick snap-on connection, can be quickly installed and disassembled, easy to clean.
