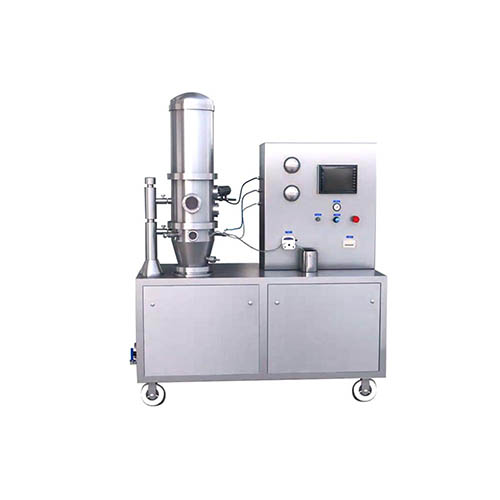

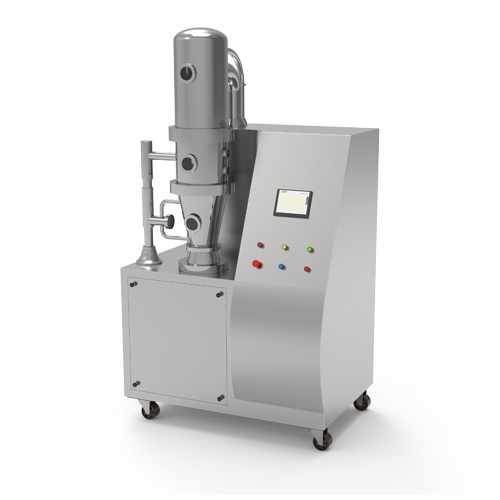

FBD-Lab Series Lab Type Fluid Bed Drying Machine

FBD-Lab Series Lab Type Fluid Bed Drying Machine

FBD-Lab Series Lab Type Fluid Bed Drying Machine is suitable for granulating, &coating for powder/granules/ in container by spray binder/coating material.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

FBD-Lab Series Lab Type Fluid Bed Drying Machine is suitable for granulating, &coating for powder/granules/ in container by spray binder/coating material.

Specification Parameter

Item	Specification
Model	FBD-Lab	FBD-LabPro
Working Volume	4L For granulation	4L/12L for granulation
Working Volume	2.4K for coating	2.4L/4.8L for Coating
Air Compressor Flow	210cbm/h	300cbm/h
Heating Temp.	~80℃	~80℃
Compressed Air Pressure	0.4-0.6Mpa	0.4-0.6Mpa
Power Supply	380v 50hz Three phase	380v 50hz Three Phase
Total Power	6Kw	7Kw
Total Weight	180Kg	230kg
Dimension	14508002000mm	14508002660mm

Product Application

1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials

Product Feature

1

Closed operation system prevents cross-contamination.
2

Precise control of temperature with tiny fluctuation range.
3

"Twin-filter chamber system" ensures the continuance of fluidization.
4

With advanced German polishing technology, equipment surface is more delicate.
5

User interface has visualized animation, simple operation, easy to clean.
6

The key connection parts are imported from Germany, and durable with the high safety factor.
7

Equipment structure is simple, easy disassembly, no dead angle, easy to clean, cGMP-compliant.
8

Airflow distribution structure is elaborate-designed, and more uniform, brings higher production efficiency, stable product quality, good reproducibility.
9

Lab scale, semi-works production and production scale are designed with the same standard, so the effect of amplification from lab scale to production scale is consistent.
