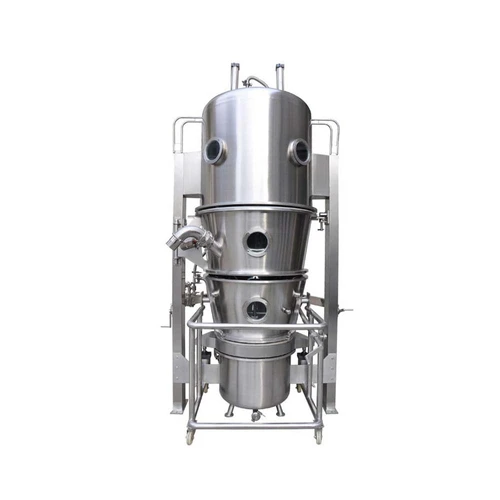

FG Series Fluidized Bed Dryer

Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on. Large granules, small block, viscous block granular materials. The materials such as Konjak, polyacry lamide and so on , which will have the volume changed during drying.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Specification Parameter

Model	FG-200	FG-300	FG-400	FG-500
Volume	670L	1000L	1300L	1500L
Capacity	200Kg/batch	300Kg/batch	400Kg/batch	500Kg/batch
Power of fan	22kw	45kw	55kw	55kw
compressure of compressed air	0.4-0.7Mpa	1.1Mpa	0.6Mpa	0.6Mpa
Consumption of compressed air		3m3/min	3m3/min	3m3/min
Steam heater		120m2	160m2	180m2
Steam consumption	280Kg	400Kg	500Kg	530Kg
Reference size for installation of main machine		475045004570mm	975045007744mm	975045007744mm

Product Application

Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on。

Large granules, small block, viscous block granular materials.

The materials such as Konjak, polyacry lamide and so on , which will have the volume changed during drying.

Product Feature

1

Closed operation system prevents cross-contamination.
2

Precise control of temperature with tiny fluctuation range.
3

"Twin-filter chamber system" ensures the continuance of fluidization.
4

With advanced German polishing technology, equipment surface is more delicate.
5

User interface has visualized animation, simple operation, easy to clean.
6

The key connection parts are imported from Germany, and durable with the high safety factor.
7

Equipment structure is simple, easy disassembly, no dead angle, easy to clean, cGMP-compliant.
8

Airflow distribution structure is elaborate-designed, and more uniform, brings higher production efficiency, stable product quality, good reproducibility.
9

Lab scale, semi-works production and production scale are designed with the same standard, so the effect of amplification from lab scale to production scale is consistent.
