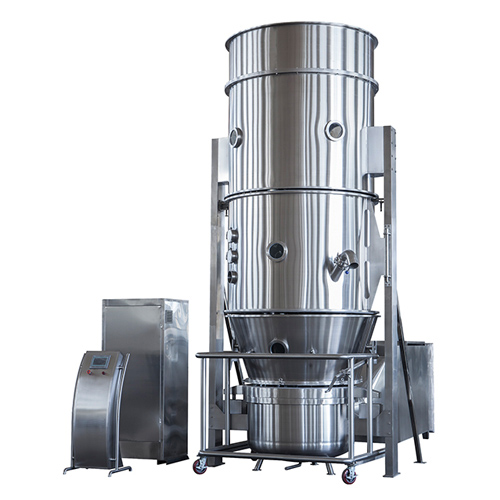

FL Series Boiling Spray Fluid Bed Dryer

FL Series Boiling Spray Granulation Drying Machine One-step Granulator: The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Fl-Series Fluid Bed Dryer & Granulator Is Used In Pharmaceutical Solid Dosage Area For Mixing.Granulation And Drying Application, Or Drying The Wet Granules Processed From High Shear Mixer Granulator. It’s The Major Processing Equipment In Solid Dosage Production Line. The Equipment Is Plc Automation Controlled And Well Satisfies The Current Gmp And China Pharmacopoeia Regulation.

The powder granule in fluid bed appears in the state of fluidization. It is preheated and mixed with clean and heated air. At the same time the solution of adhesive is sprayed into the container. It makes the particles become granulating that contains adhesive. Being of unceasing dry through hot air, the moisture in the granulating is evaporated. The process is carried out continuously. Finally it forms ideal, uniform and porous granules.

Specification Parameter

Model	Material Bowl Heating	Batch Size	Heating Temperature	Fan Motor Power	Steam Consumption	Compress Air Cons	Overall Dimension	Weight
Model	L	kg /p=0.5	℃	kw	m3/h	m3/min	W×H×D(mm)	kg
FL-25	48	3-10	Room Temp.~110	4.0	35	0.6/0.3	900×2500×500	950
FL-50	74/60	5-20		5.5	50	0.6/0.3	1200×2600×700	1850
FL-75	108/85	10-30		7.5	80	0.6/0.3	1200×2600×700	1950
FL-100	142/120	12-40		11	90	0.9/0.3	1400×3200×900	2100
FL-150	213/166	20-60		11	120	0.9/0.3	1400×3400×1000	2300
FL-200	285/240	25-80		15	180	1.0/0.4	1600×3600×1100	2400
FL-300	420/330	38-120		22	240	1.0/0.4	1700×3900×1200	2700
FL-400	498	50-160		30	300	0.4	2000×4100×1400	3000
FL-500	670/579	65-200		37	330	1.3/0.4	2000×4400×1400	3850
FL-600	721	75-240		37	400	0.5	2200×4900×1600	4500
FL-800	1025/881	100-300		45	450	1.3/0.5	2200×5300×1600	5000
FL-1000	1239	125-400		45	480	0.5	2400×6100×1800	6000
FL-1200	1565	150-500		55	530	1.6/0.5	2400×6400×1800	6400

Product Application

1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials

Product Feature

1

By using powder granulation, to improve the liquidity and thinner dust.
2

By using powder granulation, to improve solubility property.
3

Mixing—granulation—drying can be finished in one device (one-step granulation)
4

To adopt antistatic filtering mediums, to ensure safe operation.
5

Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
6

No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
