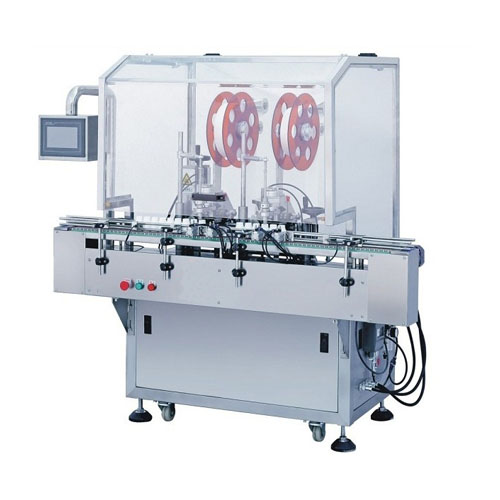

High speed cotton inserting machine

It adopts automatic variable frequency controlled system to allow speed regulation,avoiding the problem of inflexibility.It uses FESTO cylinder and accurate position separator to make sure the paper is completely inserted into the bottle.

Product Description
Specification Parameter
Product Application
Product Feature

Product Description

Specification Parameter

Model Name	BPZ-120
Power source	220V/50HZ/1000W
Output（bottle/min）	0-130
Wrap page of drum（bore/dameter/wicth）（mm）	75/300-350/60-80
Consumption Air（m³/h）	0.1
Air pressure（Mpa）	0.5
Net dimensions W×D×H（mm）	1600×800×1600
Weight（kg）	380

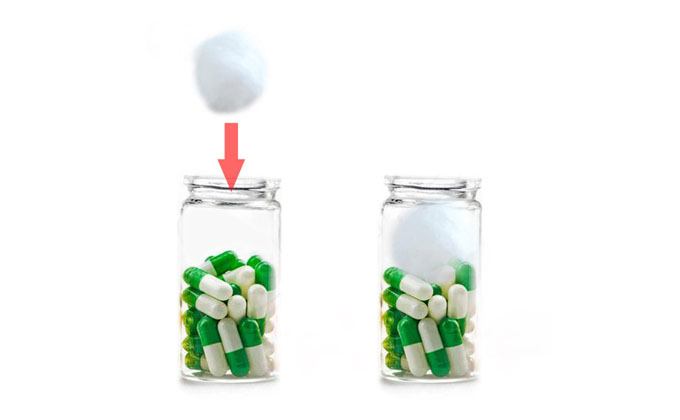

Product Application

Put cotton into the bottle

Product Feature

1

It is equipped with automatic protective device to so that the machine does not work in case of no bottles to ensure the accuracy of the working process.
2

The special paper inserting technology ensure accurate of the working process.Inserting paper in reverse,prevents paper being exposed out of bottle mouth and ensures the stability and the quality of the next processes. It has two working inserter and does not have to stop to change paper.
3

It is controlled by opto-electrical technology to stop the machine when lacking paper.When is starts again,the following counting machine also begins to work.
4

It is equipped with several protective devices to ensure the safety of the working staft.
