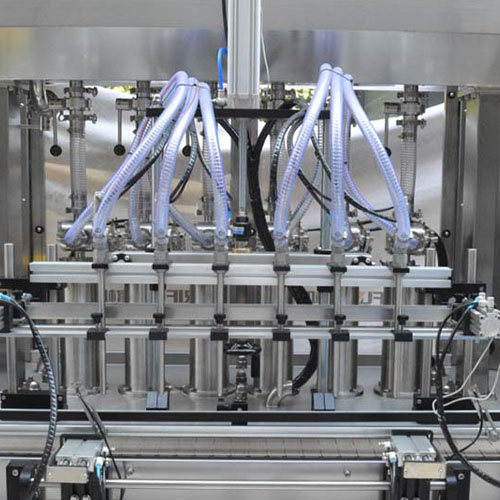

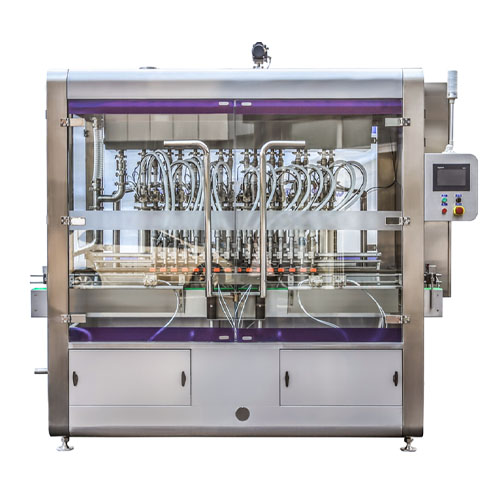

LineaFill-Series Liquid Filling Machine

LinearFill-Series Automatic Bottle Filling Machine is applicable for the automatic packing of 50-5000ml liquid, cream, ointment, oil, and other water-water like liquid.

Product Description
Specification Parameter
Product Application
Product Feature

Product Description

It adopts piston type quantitative principle, electrical and pneumatic components are selected from world-renowned brands, controlled by PLC and man-machine interface, novel design, beautiful appearance, friendly interface, strong adaptability, simple operation, accurate filling volume, convenient maintenance, etc.

Specification Parameter

Model Name	LinearFill-4	LinearFill-8	LinearFill-12
Filling Nozzle	4	8	12
Production Capacity	40	60	80
Applicable Filling Material	Cream, Ointment, Water, Juice, Water-Like Liquid, Oil, Paste, etc.
Applicable Filling Material	***Note: Different Material May requires different filling Pump, please tell before you order the machine
Filling Accuracy	200ml: +/-1%, 200-5000ml: +/-0.5%
Filling Range	50-5000ml
Power Supply (without heating)	3kw	5kw	6kw
Power Supply	380v 50hz Three phase
Air Pressure	0.6Mpa
Applicable Bottle Shape	Round, Flat, Oval, Irregular, Square, Jar, Can, etc.
Bottle Material	HDPE, Aluminum, Plastic, Glass, etc.

Product Application

LinearFill-Series Automatic Bottle Filling Machine is applicable for the automatic packing of 50-5000ml liquid, cream, ointment, oil, and other water-water like liquid.

Product Feature

1

The high-strength stainless steel frame is adopted, which is easy to disassemble and assemble, easy to clean, and meets GMP requirements
2

The filling head is equipped with a special leak-proof device, and there is no wire drawing or dripping during filling;
3

There is no bottle no filling function, and the liquid level automatically controls the feeding;
4

Use world-renowned brands of electrical and pneumatic components, with low failure rate, reliable performance and long service life.
