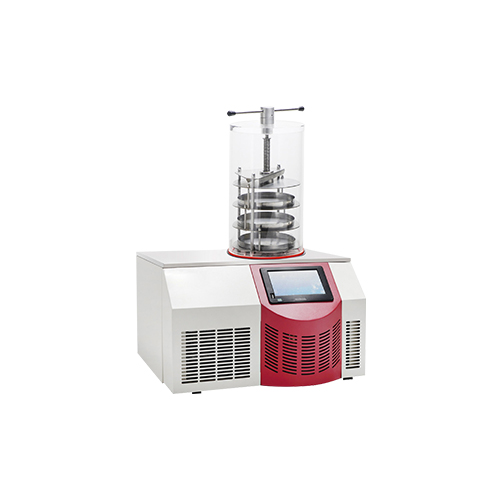

LTDG-CX Series Small Mini Liofilizer Vacuum Freeze Dryer

LTDG-CX Series Small Mini Liofilizer Vacuum Freeze Dryer

It is applied not only in pharmaceutical pilot workshop and small batch production but also in food or medicinal freeze-dry-ing process.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Our freeze dryer is a versatile solution utilized across diverse industries including pharmaceuticals, biotechnology, biological sciences, materials science, chemicals, food, and agriculture. It is instrumental in the production of vaccines, drugs, and the long-term preservation of biological tissues and organs.

Specification Parameter

Model	LTDG-10S	LTDG-10T	LTDG-10P	LTDG-10PT

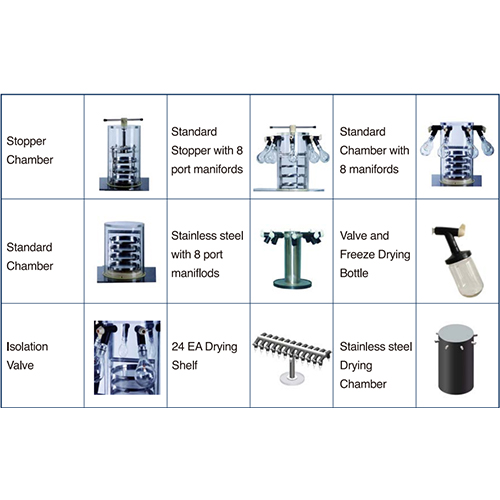

Type	Standard chamber	Stoppering chamber	Standard chamber with 8 port manifold	Standard stoppering
Type	Standard chamber	Stoppering chamber	Standard chamber with 8 port manifold	chamber with 8 port manifold
Final condenser temp (ºC)	-55
Vacuum Degree (Pa)	<10
Condenser volume (L)	9
Freeze drying area (m2)	0.12	0.09	0.12	0.09
Ice condenser capacity (Kg/24h)	3
Qty of shelf	4	3	4	3
Material loading capacity/shelf (ml)	300	300	300	300
Material loading capacity (ml)	1200	900	1200	900
Freeze drying time (h)	24	24	24	24
Manifold	/	/	8 pieces	8 pieces
USB Interface	Y	Y	Y	Y
Drying Chamber(standard)	Transparent acrylic
Vacuum Pump	Speed: 2L/S
Control System	Microprocessor, touch screen
Power supply (V/Hz)	220V/50Hz,60Hz
Exterior dimension (WxDxH mm)	582541374/684
Penicillin bottle Φ22	260	195
Penicillin bottle Φ16	480	360
Penicillin bottle Φ12	920	690

Product Application

The LTDG-CX Series freeze dryer is meticulously designed for small-batch laboratory testing. Both Bench Top and Console models feature advanced designs and a compact footprint, making them ideal for space-conscious environments.

Product Feature

1

It drys at low temperature in order to make protein degeneration, micro-organisms loss biological activity.
2

The material in the volatile components and nutrients heated degeneration of and aromatic ingredients loss a little because of the low-temperature drying.
3

It is almost impossible for microorganisms and the role to grow so that the material can maintain the original character in the low-temperature drying process.
4

The volume and shape essentially doesn’t change and has a strong water uptake after drying.
5

Because it has little oxygen under the vacuum drying, the vulnerable materials have been protected.
6

It can remove 95-99.5 percent of water, and the retention period lasts longer.

More Details

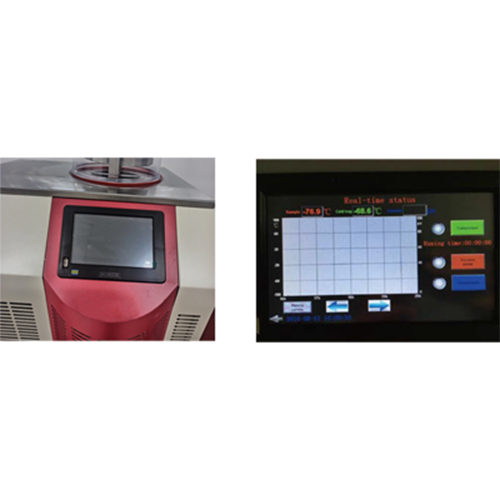

Humanized Design

The 7" colorful touch panel displays essential information such as product sample temperature, cold trap temperature, and vacuum levels both digitally and through curves, ensuring clarity and ease of monitoring.
Ergonomically tilted touch panel facilitates more comfortable and intuitive operation.
