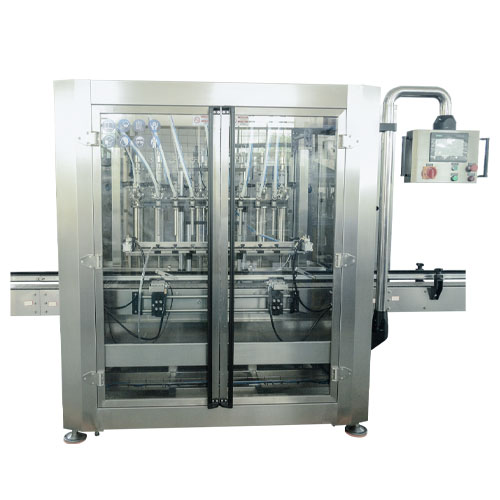

LTXG-Eco Series Liquid Filling Capping Machine

LTXG-Eco Series Liquid Filling Capping Machine

LTXG-Eco Series Liquid Filling Capping Machine is specially designed and manufactured for small scale liquid filling manufacturing factory. This machine is complete Pneumatic Filling System with simple and easy adjustment.

Product Description
Specification Parameter
Product Application
Product Feature

Product Description

LTXG-Eco Series Liquid Filling Capping Machine is specially designed and manufactured for liquid filling manufacturing factory. This machine is complete Pneumatic Filling System with simple and easy adjustment.

It is widely used in Food and cosmetic and agriculture industry for water, waterlike liquid, cream, oil and ointment filling.

Specification Parameter

Model Name	LTXG-2Eco	LTXG-4Eco	LTXG-8Eco	LTXG-12Eco	LTXG-16Eco
Filling Nozzle	2	4	8	12	16
Production Capacity	20	30	50	60	70
Applicable Filling Material	Cream, Ointment, Water, Juice, Water-Like Liquid, Oil, Paste, etc. ***Note: Different Material May requires different filling Pump, please tell before you order the machine
Filling Accuracy	200ml: +/-1%, 200-5000ml: +/-0.5%
Filling Range	50-5000ml
Power Supply (without heating)	1Kw	2kw	2.5kw	3kw	5kw
Power Supply	380v 50hz Three phase
Air Pressure	0.6Mpa
Applicable Bottle Shape	Round, Flat, Oval, Irregular, Square, Jar, Can, etc.
Bottle Material	HDPE, Aluminum, Plastic, Glass, etc.
Dimension (mm)	20009001750	200010001950	350011001950	450011001950	500011001950
Weight	200kg	400kg	600kg	800kg	1000kg

Product Application

It is widely used in Food and cosmetic and agriculture industry for water, waterlike liquid, cream, oil and ointment filling.

Product Feature

1

With touch screen control panel, it is more convenient to adjust different kinds of parameter.The visual working data makes the adjustment more accurate.
2

All Material contact parts are stainless steel 304. SS316L is optional.
3

Pneumatic Filling System: Simple and easy clean.
4

Low cost with high production capacity.
