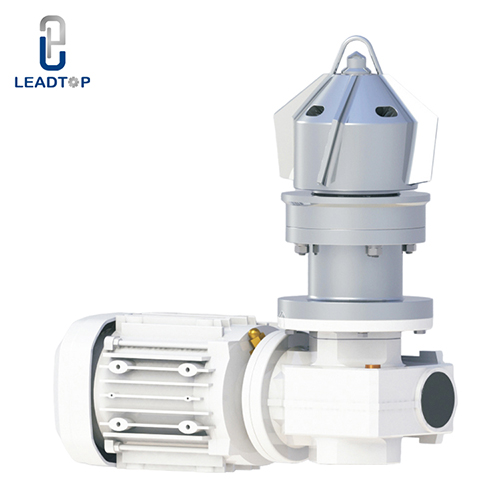

Bottom Magnetic Agitator
Bottom Magnetic Agitator
Bottom Magnetic Agitator
Bottom Magnetic Agitator
Bottom Magnetic Agitator
Bottom Magnetic Agitator
Bottom Magnetic Agitator
Bottom Magnetic Agitator
Bottom Magnetic Agitator
Bottom Magnetic Agitator

Bottom Magnetic Agitator

The Outer Magnet Is Driven By The Gear Motor To Rotate, And The Magnetic Field Of The Outer Magnet Is Transmitted To The Inner Magnet Through The Isolation Sleeve The Inner Magnet And The Outer Magnet Attract Each Other To Generate Torque For Synchronous Operation Then The Inner Magnetic Steel Drives The Stirring Shaft And The Paddle To Rotate To Meet The Stirring Requirements

  • Product Description
  • Product Application
  • Product Feature
  • More Details

Product Description

The Outer Magnet Is Driven By The Gear Motor To Rotate, And The Magnetic Field Of The Outer Magnet Is Transmitted To The Inner Magnet Through The Isolation Sleeve The Inner Magnet And The Outer Magnet Attract Each Other To Generate Torque For Synchronous Operation Then The Inner Magnetic Steel Drives The Stirring Shaft And The Paddle To Rotate To Meet The Stirring Requirements


Product Application

Product Application

1. Equipment Agitators Such As Fermentation Tanks, Reactors, Liquid Dispensing Tanks, Etc. In The Biological Industries;

2. High-Pressure, Flammable, Explosive, Toxic And High-Pressure Equipment Agitators Such
As Reaction Kettles And Hydrogen Reaction Reactors In The Chemical Industry

Product Feature

  • 1

    The Original Shaft Dynamic Rotary Seal Is Replaced By The Isolation Sleeve To Isolate The Dead Seal. There Is No Wear, Heat, Deformation, Aging, Damage, High Temperature And High Pressure Problems To Ensure That The Seal Has No Leakage

  • 2

    The Magnetic Stirring Torque Can Be Configured According To The Power To Protect The Motor From Overload And Damage To Ensure Safe Operation

  • 3

    Long Service Life And Less Wearing Parts. Frequent Replacement Without Shaft Seal Mission Issues.
    Ensure The Safety Of Sealing In The Environment Where The Reaction And Reverse Fermentation Work Continuously For a Long Time. High Vacuum Sealed Environment Without Leakage

Magnetic Stirring

More Details

Magnetic Stirring

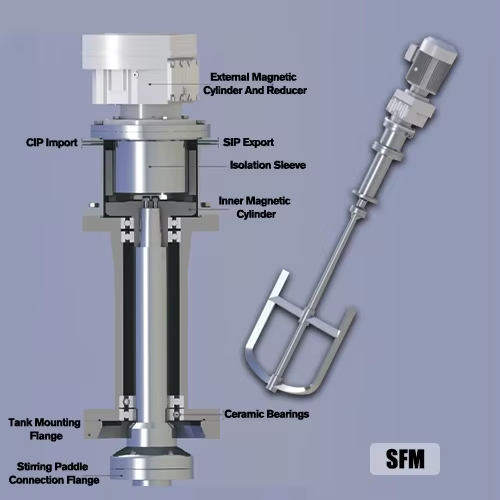

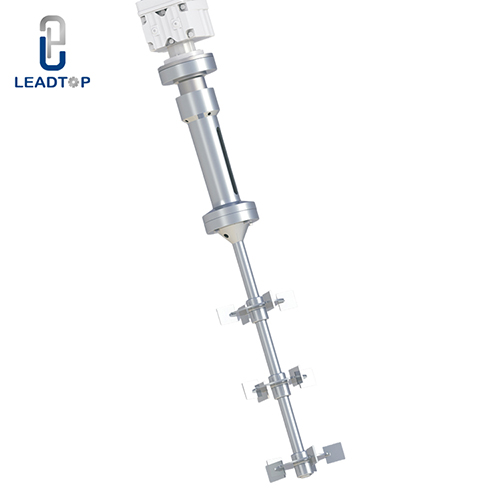

SFM Magnetic Stirring On Magnetic Suspension (External Magnetic Drive Structure)

More Details

SFM Magnetic Stirring On Magnetic Suspension (External Magnetic Drive Structure)
Scope Of Application:
1. Equipment Agitators Such As Fermentation Tanks, Reactors, Liquid Dispensing Tanks, Etc. In The Biological Industries;
2. High-Pressure, Flammable, Explosive, Toxic And High-Pressure Equipment Agitators Such
As Reaction Kettles And Hydrogen Reaction Reactors In The Chemical Industry

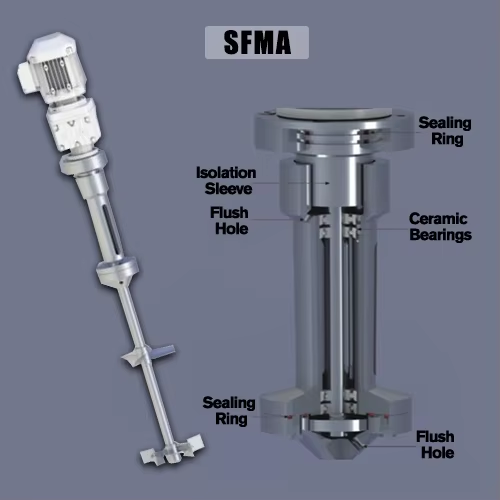

SFMA Magnetic Stirring On Magnetic Suspension (Internal Magnetic Drive Structure)

More Details

SFMA Magnetic Stirring On Magnetic Suspension (Internal Magnetic Drive Structure)
Scope Of Application:
Fermentation Tanks, Reactors, Liquid Dispensing Tanks And Other Equipment Agitators In The Health production
And Biological Industries

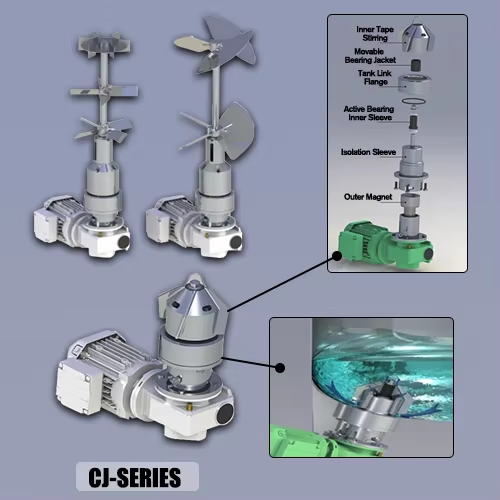

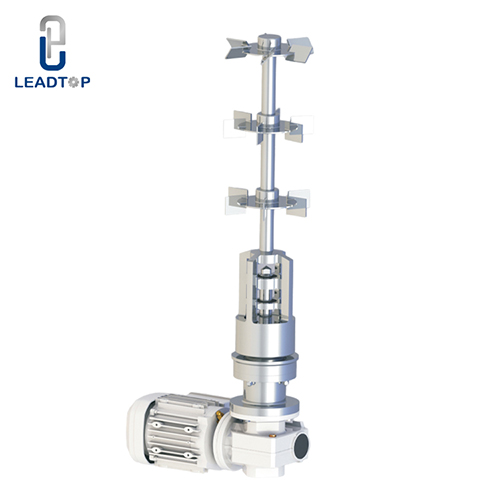

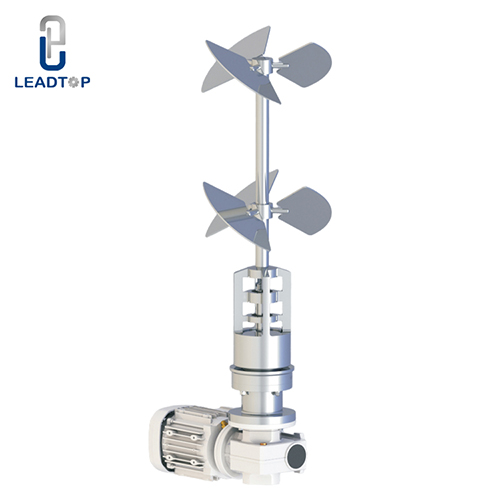

CJ-Series(Magnetic Force Below)

More Details

CJ-Series(Magnetic Force Below)

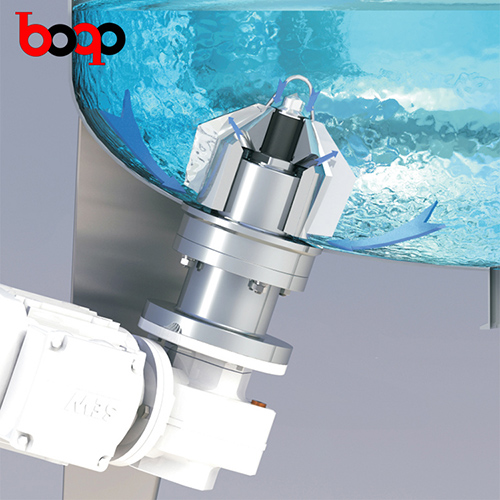

Hygienic Lower Magnetic Stirring Is a Bottom-Mounted Lower Stirrer Through Magnetic Transmission. It Is a Fully Enclosed,
Leak-Free And Pollution-Free Stirring Method. Because It Is a Non-Contact Transmission Torque Without a Transmission Shaft Through
Magnetic Transmission, It Is The Static Seal Of The Isolation Sleeve Isolation Method Replaces The Dynamic Seal Of The Drive
Shaft, Which Can Completely Solve The Leakage Problem That Cannot Be Solved By The Mechanical Seal. The Equipment Is Mainly Used
For Dissolving, Mixing And Ingredients In The Health production, Food And Other Industries. Its Structure Is Composed Of Inner
Magnetic Steel (With Stirring Paddle), Spacer Sleeve, Movable Bearing, Outer Magnetic Steel, Driving Device, Etc.
×
