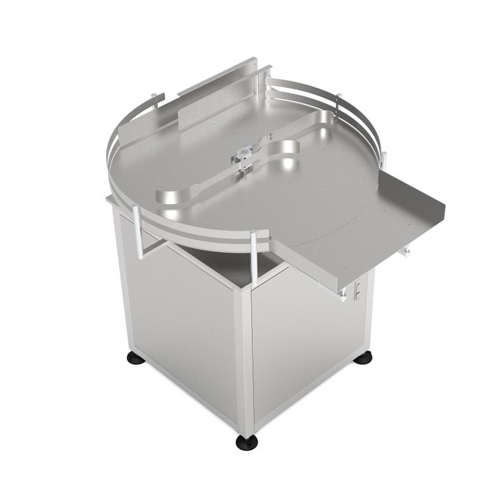

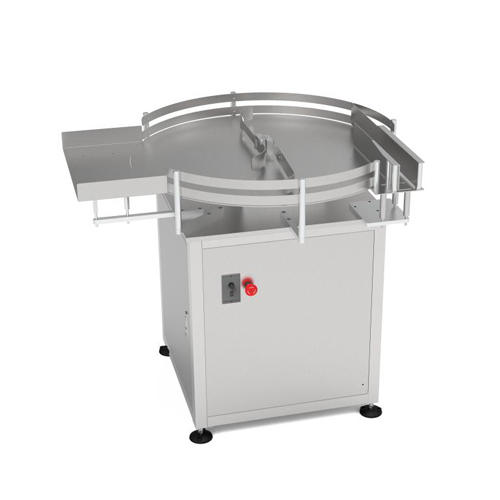

Turntable Desktop Bottle Orienting Machine is an automated bottle arranging device based on the principle of centrifugal force. It achieves orderly alignment and directional output of bottles through the coordinated action of the turntable and orienting plates. Its design emphasizes structural simplicity and operational convenience, making it suitable for small-to-medium-scale production lines or laboratory settings.

Product Description
Specification Parameter
Product Application
Product Feature

Product Description

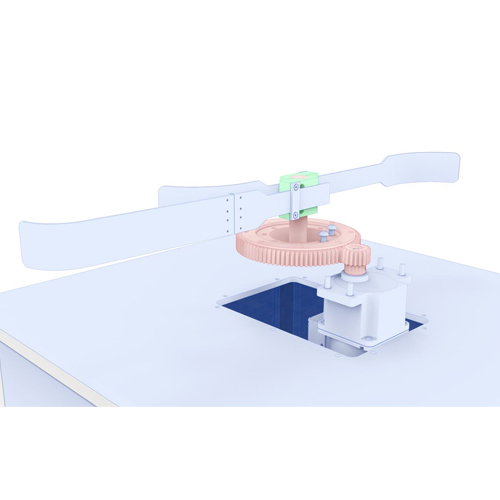

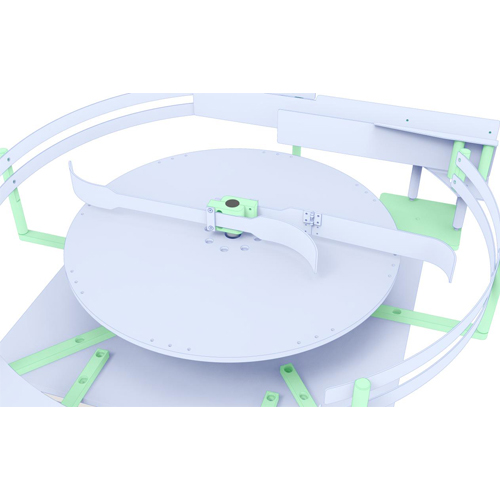

An AC motor drives the externally geared hollow slewing bearing via gears, rotating the turntable. Bottles are propelled toward the turntable edge by centrifugal force, colliding or rubbing against the fixed orienting plates mounted at the center. These plates feature specific angular designs (e.g., inclined or curved baffles) to guide bottles into an upright position with necks facing upward.

Turntable speed is steplessly adjustable (typical range: 30–120 bottles/minute) via a rotary knob to accommodate different bottle types and output requirements. Oriented bottles are discharged orderly through a guide channel directly onto a conveyor belt or into the next process.

Specification Parameter

Product Application

Multi-Bottle Compatibility: Handles round, square, and non-standard shaped bottles (custom orienting plate edge contours required).

Product Feature

1

Minimal Learning Curve: Simple structure requires operators only to load bottles and adjust speed, eliminating specialized training.
2

Rapid Changeover: Switching bottle types requires only speed adjustment; universal orienting plate design avoids mechanical modifications.
3

Low Failure Rate: Absence of complex sensors or pneumatic components reduces jamming risks (common in photoelectric detection models).
4

Easy Cleaning & Maintenance: Turntable and guide plates use stainless steel, complying with food/pharmaceutical hygiene standards.
5

Suitable for Medium-Low Capacity: Ideal for 30–200 bottles/minute lines, such as labs, small pharmaceutical plants, or cosmetic filling lines.
6

Multi-Bottle Compatibility: Handles round, square, and non-standard shaped bottles (custom orienting plate edge contours required).
