In pharmaceutical manufacturing, selecting the correct coating technology is pivotal for product performance. The industry primarily relies on three core types of equipment: the traditional Standard Coating Pan, the high-efficiency Perforated Pan System, and the specialized Fluidized Bed Coater.
Understanding the operational principles and ideal applications of each is the first step in optimizing your coating process. Despite their differences, all coating machines function on two basic principles: the uniform application of a coating solution to a moving tablet bed, and the subsequent evaporation of the solvent using heated air. The method of bed movement and air introduction defines the machine's category, efficiency, and suitability for specific tasks. Learn more about the Working Principle of tablet coating machines.
This category is defined by a rotating drum or pan that tumbles tablets mechanically. The key distinction within this group lies in the pan's design, which directly dictates drying efficiency.
The standard coating pan is a foundational design, featuring a tilted, solid-walled metal pan that rotates. Tablets cascade and mix due to gravity, while coating solution is sprayed onto the bed. Drying air is typically introduced over the top of the bed or via simple immersed tubes. This reliable principle is exemplified in compact, modern machines like the LTPMCHINA SHL Series Small Film Coating Machine, which is ideal for R&D and small-batch production.
Key Characteristics:
Drying Efficiency: Moderate to low, as air contact with the entire bed is limited.
Coating Uniformity: Adequate for sugar coating but less consistent for thin film coatings.
Typical Applications: Ideal for R&D, small-scale production, and traditional sugar coating processes. Its simplicity offers a lower initial investment.
Perforated pans represent the modern standard for industrial film coating. The drum is constructed with a partially or fully perforated wall, enclosed within a cabinet. This allows drying air to be pulled directly through the tumbling tablet bed, drastically improving thermal transfer and reducing process times.
Several specialized designs have been developed:
Accela-Cota / Hi-Coater: Drying air enters the drum, passes horizontally through the tablet bed, and exits through the perforated walls.
Driacoater: Features integrated air channels within the drum wall. As it rotates, these channels deliver air directly into the heart of the tablet bed.
Glatt Coater: Employs a fully perforated drum with advanced baffles to guide a horizontal airflow, minimizing spray zone turbulence for exceptional film uniformity.
Key Characteristics:
Drying Efficiency: Very high, supporting faster cycles and higher spray rates.
Coating Uniformity: Excellent, making it suitable for precision functional coatings (e.g., enteric, controlled-release).
Typical Applications: The dominant choice for medium- to high-volume commercial production of film-coated tablets. For R&D and scale-up activities, LTPMCHINA LabCoa-series Lab Scale R&D Coating Machine offers the same perforated pan principle in a compact, benchtop design.

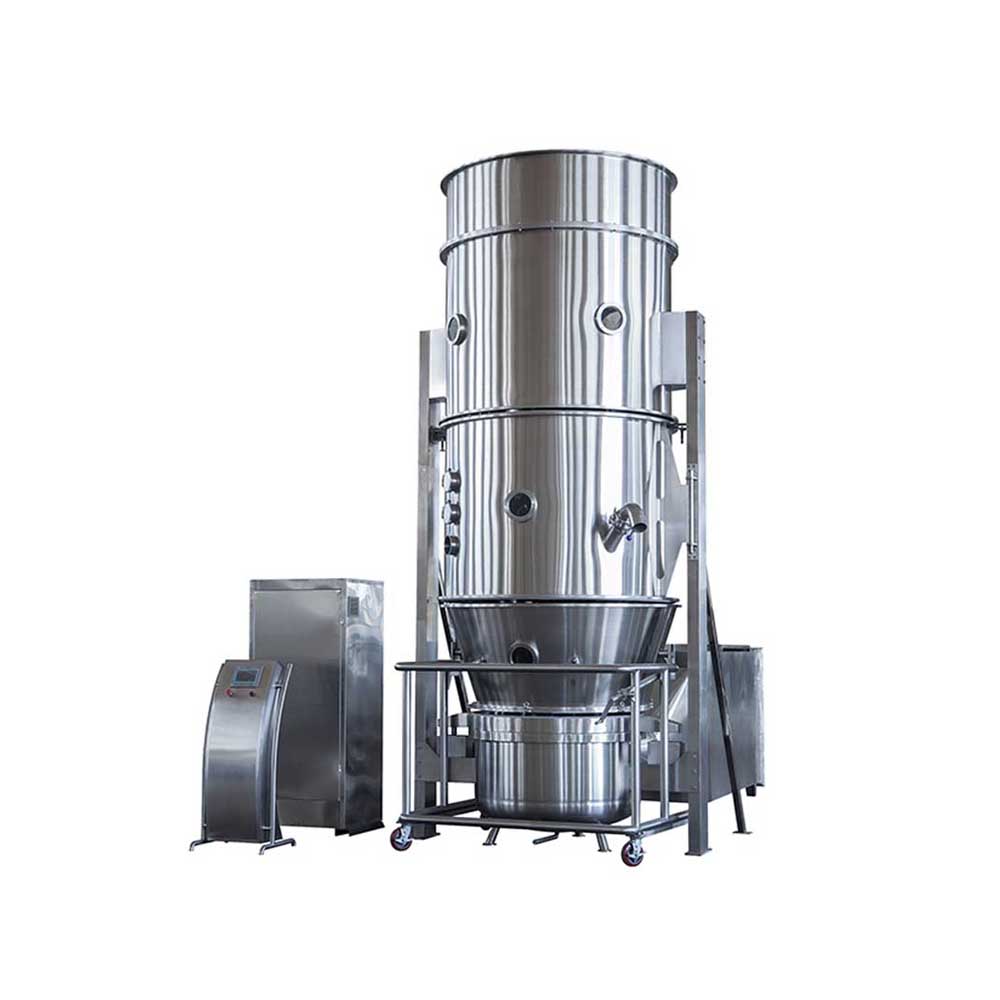

This system uses a fundamentally different approach. Particles (tablets, pellets, or granules) are suspended and mixed by a powerful, upward stream of heated air within a vertical chamber. Coating solution is sprayed onto this fully fluidized mass.
Different configurations cater to specific needs:
Top Spray: Best suited for coating granules and pellets where utmost precision is not critical.
Bottom Spray (Wurster System): The gold standard for coating pellets and granules, providing unmatched uniformity for multi-particulate dosage forms.
Key Characteristics:
Drying Efficiency: Extremely high due to the massive surface area exposed to the air.
Coating Uniformity: Superior for small, discrete particles like pellets.
Typical Applications: Essential for pellet coating and granule coating. It can be used for robust tablets but is less common than perforated pans for this purpose. LTPMCHINA's expertise in air suspension technology is embodied in our range of Fluid Bed Processors, which can be configured for precise coating tasks.
Selecting a coating machine extends beyond the initial category choice. A thorough technical evaluation is crucial. While perforated pans are the industry standard for tablet film coating, the following parameters must be addressed for any equipment purchase.
The machine's air handling capacity—specifically the volume and temperature of the process air—is the primary determinant of solvent evaporation rate. This capability directly dictates the maximum allowable spray rate for the coating solution; insufficient air capacity creates a process bottleneck, forcing extended coating cycles and reducing overall throughput, which is a fundamental factor in calculating production efficiency and total cost-of-ownership.
The coating formulation dictates a precise process window where the spray rate and evaporation rate must be balanced. The machine's role is to provide exact control over air temperature and flow to maintain this balance, thereby preventing defects like sticking from overwetting or dusting from underwetting.
The total tablet surface area, not simply batch weight, dictates coating solution needs. Smaller tablets with their higher surface-area-to-weight ratio consume more solution per kilogram, meaning the core size, shape, and texture are key drivers of both material use and process parameters.
Transfer Efficiency, the measure of coating solids successfully deposited on the product, is a key cost and sustainability driver. High-efficiency systems, like modern perforated pans, achieve rates over 85% to minimize waste, while low efficiency directly increases material costs and environmental impact.
Consistent coating quality depends on precise control of key process parameters. Modern equipment with automated PLC controls and data logging capabilities enables this control, ensuring batch-to-batch consistency while providing essential documentation for quality assurance and regulatory requirements.
Selecting the right coating machine is a critical step in building an efficient production line. At LTPMCHINA, we provide more than just individual machines; we offer integrated solutions that ensure your tablet press, capsule filler, and tablet coating machine work in perfect harmony. Leverage our expertise to design an optimal process that maximizes your product quality and output.
Ready to build a seamlessly integrated production line? Contact LTPMCHINA today via info@ltpmchina.com for a professional consultation, and let us help you optimize your entire manufacturing process from tableting to coating.
